sMS-200ultra Neo PLUS sNH-10G switch mod

2,300.00 €

Category:

This price includes:

  • the sMS-200ultra with switch modification unit
  • SOtM sNH-10G switch 9Vdc (12V dc optional)
  • labor to enabling the sCLK-EX 1 clock point, and
  • SMB connector installation and cables

Please allow additional time for the mod.

Why should you modify?

  • The sMS-200ultra has the sCLK-EX clock with 4 points. The sCLK-EX can be used for all digital devices that require clock signals such as DAC, USB host card, CD player, PC main board and LAN controller.
  • Two points are used by the system internally (sCLK-EX2425) and two points left free to clock other digital devices (eg SOtM sNH-10G Ethernet switch).

What is the modification?

  • Installing SMB connector only to have the clock signal from the  sMS-200ULTRA sCLK-EX clock point

  • Modifying the sMS-200ultra sCLK-EX clock

  • Installing the SMB connector to the sCLK-EX side

  • Installing the SMB connector to the sNH-10G side

This modification works to eliminate noise coming from the Ethernet connection and improves/cleans the sound as a result.

Description:

sMS-200ultra is the newest generation of audio network player with a built-in ‘Media Player Board’ developed by SOtM.

The sMS-200ultra is similar to the sMS-200, and boasts a dedicated ARM processor board, purpose-built to support only audio. The difference lies in the addition of the upgraded sCLK-EX clock board – in a compact and specially-designed case. The clock is one of the most important factors that determines the sound quality your digital devices, and the inclusion of the clock in this unit will improve your entire system – giving an overall solid performance to your listening experience. This means that you get a custom-built product focused on creating the perfect audio sound performance with strong functionality, with none of the performance problems and deterioration of sound that can occur with ready-made processor boards from other manufacturers.

Player software:  ROON, MPD, DLNA, SqueezeLite and others are available.  You can use your music files from an external USB storage device, network shared folders or streaming services – or easily add even more functions via a software upgrade. Simple and nice looking Web GUI allows users to choose the desired audio function, setup and control playing music file through Apps on users’ smart devices.

sMS-200ultra is the only network player of its kind – delivering high fidelity together with impressive sound at a great price. Immerse yourself in the difference with the sMS-200ultra.

Voltage

9V, 12V
Clocks

sCLK-EX with the 50ohm master clock input, sCLK-EX with the 75ohm master clock input

Specification

Specifications (sMS-200ultra)

OS – Linux

Audio player
Roon Ready
DLNA renderer
Music Player Daemon(MPD)
Logitech Media Server(LMS)
Squeezelite
HQplayer
Shairport
Audio feature
PCM 32bit/768KHz max, DSDx512 max
Ultra Low Noise Regulator
Active Noise canceller
USB port
High-End audio grade USB port x 1
USB 2.0 port x 2
Output voltage : +5.0V(+0.5V, -0.25V)
Over current protection : 0.8A at 20°C
Recommend output current : 0.5A >
Ethernet port
RJ45 Gigabit Ethernet
External power input
Input voltage : +6.5V ~ +9Vdc(Optional 12.0Vdc)
Input current : 2A max
5.5mm OD, 2.1mm ID adaptor jack
Internal reference clock
sCLK-EX2425 board
External master clock input : Optional
Input frequency : 10MHz
Isolated clock input
50Ω BNC connector x 1
Operating environment
Operating temperature range: +10 ~ +30℃
Storage temperature : 0 ~ +40℃
Operating & storage humidity : 10% ~ 90%
Dimension
106 x 48 x 227(mm)
Weight
1.5Kg >

Description:

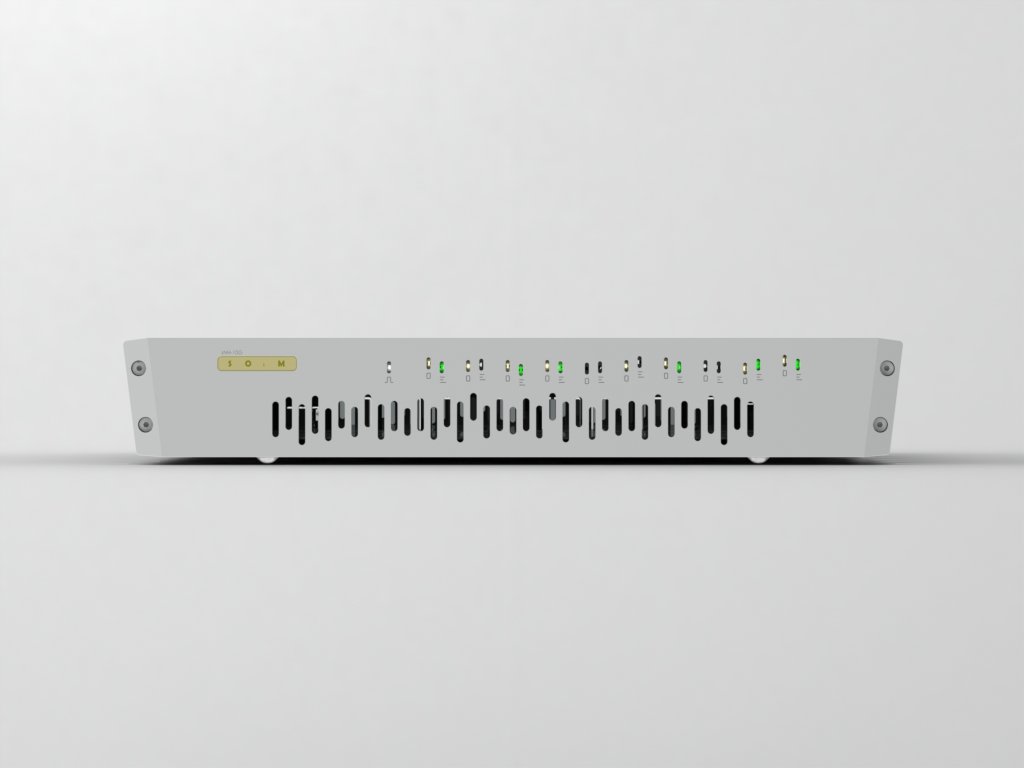

sNH-10G Network Switch

If you thought it wouldn’t be possible to increase your love of music, then think again.

If you are looking for a rich and beautiful sound with your quality audio system, and are passionate about finding the perfect high-end sound with your system, then look no further than the purpose-built sNH-10G Network Switch from SOtM.

SOtM has specifically developed the sNH-10G Network Switch for audio systems – to overcome low performance in a network environment and/or enhance the performance in a functional network environment. It is a product that can fundamentally improve the performance of your network audio system.

Many audiophiles invest a lot of time and money in order to enjoy their passion for audio, but find that it is not easy to overcome and resolve issues with their sound.

This is especially true if you are working with a networked system, but occurs even when operating ultra high-end digital audio systems. Physical network transmission technology has been waiting for a solution.

While there are already a variety of high-end digital audio devices, not all of the physical network connections use techniques developed for audio transmission. This leads to a lack of musical fidelity in high-end audio devices.

The input and output terminals in the sNH-10G consist of eight LAN ports and two SFP ports. There is also an option to install the sCLK-EX (internal clock) and 10 MHz master clock connector to further maximize sound quality.

With these options and high-performance network cables, such as the dCBL-CAT7, your network audio system will be able to realize more realistic textures, a wider sound stage and explosive dynamics – all without losing the detail of the entire range.

The addition of the sNH-10G Network Switch to your high-end network audio device will allow you to experience the ultimate sound of your system.

The switch is beautifully designed, and finished with a luxurious aluminum body, to further differentiate it from other conventional network products.

Experience the difference of the sNH-10G.

Specifications (sNH-10G)

User interface
Operating indicator LED x 1
Link indicator Front LED x 10, Rear LED x 8
Active indicator Front dual Color LED x10, Rear LED x 8
Power switch : Power off, Power on with LED, Power on without LED
Network
Support Standard
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3u 100Base-FX 100Mbps over fiber optic
IEEE 802.3ab 1000Base-T Gigabit Ethernet
IEEE 802.3z 1000Base-T 1 Gbps over fiber optic
IEEE 802.3x flow control and backpressure
Full-duplex and half-duplex operation
Supports 9216 byte jumbo packet length
Connector
RJ-45 ports x 8
SFP ports x 2
Optional audio grade clock
sCLK-EX with 10MHz Master clock input
DC power input
Input voltage : 9Vdc(Optional 12Vdc or Optional 6.5Vdc ~ 8.5Vdc when installing sCLK-EX)
Voltage tolerance: ±10%
Input current : 2A max
5.5mm OD, 2.1mm ID adaptor jack
Operating environment
Operating temperature : +10 ~ +30℃
Storage temperature : 0 ~ +40℃
Operating & storage humidity : 10% ~ 90%
