sMS-200ultra Neo Special Edition

1,500.00

Impress yourself with truly beautiful music.

Category:

The sMS-200ultra has been given a facelift! Introducing the new and improved sMS-200ultra Neo, with a deeper mid-range and richer bass expression as compared to the original. The Neo will be replacing the original sMS-200ultra once it becomes available. The pricing will remain the same as the original sMS-200ultra.

The sMS-200 continues to impress, with great dynamics and a brighter sound, as compared to the new sMS-200ultra Neo.

Already own a sMS-200ultra? Upgrades are available for $80 plus shipping costs back and forth to South Korea. Please contact us for details.

About the sMS-200ultra Special Edition

For audiophiles who are looking for the best sound quality with their sMS-200ultra, the sMS-200ultra Crux Audio Special Edition further upgrades this fantastic network player with the addition of eABS-200 EMI absorber sheet (eliminating EMI noise), replacing internal wires with 7N-UPOCC silver or copper wires, and upgrading existing capacitors with EVOX capacitors.

The sMS-200ultra Crux Audio Special Edition already includes the sCLK-EX clock — the heart of this superior digital audio equipment. This new combination brings dramatic sound improvement. If you’ve been enjoying the great performance of the sMS-200, the addition of these upgrades will enhance your experience beyond the usual sound limitations of traditional small source devices.

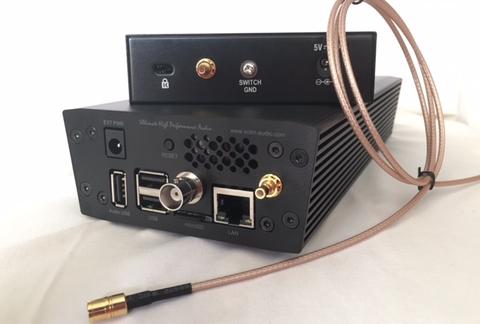

Use the master clock connector option to sync the sMS-200ultra with an external master clock device such as a Rubidium clock. This feature has the potential to redefine your perception of sound from small network players.

The sMS-200ultra is a digital technology device but, because it is based on SOtM’s deep understanding of analog technology, it can be defined as one of the few high-performance digital audio devices that performs superior analog sound.



Voltage

6.5V/8.5V, 9V, 12V

MASTER CLOCK

Without master clock connector, With master clock connector

Ethernet switch mod

Without ethernet switch mod, with ethernet switch mod

Specification

OS – Linux

Audio player
Roon Ready
DLNA renderer
Music Player Daemon(MPD)
Logitech Media Server(LMS)
Squeezelite
HQplayer
Shairport
Audio feature
PCM 32bit/768KHz max, DSDx512 max
Ultra Low Noise Regulator
Active Noise canceller
USB port
High-End audio grade USB port x 1
USB 2.0 port x 2
Output voltage : +5.0V(+0.5V, -0.25V)
Over current protection : 0.8A at 20°C
Recommend output current : 0.5A >
Ethernet port
RJ45 Gigabit Ethernet
External power input
Input voltage : +6.5V ~ +9Vdc(Optional 12.0Vdc)
Input current : 2A max
5.5mm OD, 2.1mm ID adaptor jack
Internal reference clock
sCLK-EX2425 board
External master clock input : Optional
Input frequency : 10MHz
Isolated clock input
50Ω BNC connector x 1
Operating environment
Operating temperature range: +10 ~ +30℃
Storage temperature : 0 ~ +40℃
Operating & storage humidity : 10% ~ 90%
Dimension
106 x 48 x 227(mm)
Weight
1.5Kg >
